点击图片查看原图| 基本特性 |
Memory:LPDDR3 RAM:2GB ,eMMC Flash:16 GB
Dimension(mm):35.00 x 55.00 x 2.85
Package:154 LCC pin + 149 LGA pin
OS:Android Nougat
Power Supply:3.5-4.2V
Operating Temp.:-30°C~+70°C
Weigh:about 9.2g

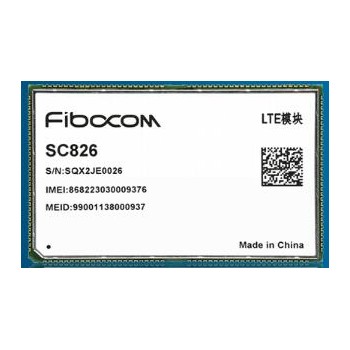

SC826-CN SC826-W
LTE FDD:B1/B3/B5/B8 CA B1+B3
LTE TDD:B34/B38/B39/B40/B41 CA B38+B39
WCDMA :B1/B8
CDMA2000 BC0/EVDO Rev.A
TD-SCDMA B34/B39
GSM/GPRS/EDGE GSM900/DCS1800
WIFI :2.4G+5G,802.11a/b/g/n/ac 2.4G+5G,802.11a/b/g/n/ac
BT:BT4.2+(CDR/EDR+LE) BT4.2+(CDR/EDR+LE)
GNSS:GPS/A-GPS/GLONASS/BD
|
|
|
处理器 |
Chipset:MSM8953
Core:8 x Cortex-A53
CPU Frequency:2.0 GHz/1.8GHz
GPU:Adreno506 ,API support OpenCL2.0 FP,DX12， OpenGL ES 3.1+,AEP
|
|
|
数据传输 |
LTE FDD(Mbps):150(DL)/50(UL)
LTE TDD(Mbps):130(DL)/35(UL)
DC-HSPA+(Mbps):42(DL)/5.76(UL)
HSPA/HSPA+(Mbps):21(DL)/5.76(UL)
UMTS(kbps):384(DL)/384(UL)
TD-SCDMA(Mbps):4.2(DL)/2.2(UL)
EDGE(kbps):236.8(DL)/236.8(UL)
GPRS(kbps):85.6(DL)/85.6(UL) |
